Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors

China Foshan Maxsteel Trading Limited certification
I'm Online Chat Now

Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors

Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors
Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors

Large Image :  Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors

Product Details:
Place of Origin: CHINA
Brand Name: No Brand
Certification: ASTM EN GB
Model Number: Vitreous Enamel Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1000 SQM
Price: USD 100.00
Packaging Details: IRON PALLET
Delivery Time: 14 days
Payment Terms: T/T
Supply Ability: 2000SQM/ DAY

Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors

Material: Steels With Glass Coating Short Name: VE Panels
Hardness: High Solidity Maintaining: Easy Clean
Fireproof: Heat Resistant

Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors





Product Description



Vitreous enamel cladding and architectural wall cladding refer to the use of vitreous enamel panels as a protective and decorative covering for building exteriors or interiors. Vitreous enamel is a type of glass coating that is fused onto a metal substrate, typically steel, through a high-temperature firing process. This creates a durable, weather-resistant, and visually appealing surface.


Vitreous enamel cladding offers several benefits for architectural applications:


1-Durability: Vitreous enamel panels are highly resistant to corrosion, UV radiation, and weathering. They can withstand harsh environmental conditions, ensuring long-term performance and minimal maintenance requirements.


2-Aesthetic Appeal: The smooth and glossy finish of vitreous enamel panels provides a visually striking appearance to buildings. They are available in a wide range of colors, textures, and finishes, allowing for diverse design possibilities.


3-Weather Resistance: Vitreous enamel cladding offers excellent resistance to moisture, temperature fluctuations, and fading. It helps protect the underlying structure from water ingress and prevents color or surface degradation.


4-Easy Maintenance: Vitreous enamel panels are relatively low maintenance. They can be easily cleaned with mild detergents and water, and their non-porous surface resists dirt, stains, and graffiti.


5-Versatility: Vitreous enamel cladding can be used in various architectural applications, including facades, roof systems, column covers, and interior wall cladding. It can be customized to fit specific design requirements and can be fabricated into different shapes and sizes.





Product Certificates


Vitreous enamel panels can undergo testing and certification by various international standards organizations and testing laboratories to ensure their quality and compliance with industry standards. Here are some common organizations and tests relevant to vitreous enamel panels:


1-BS (British Standards): The British Standards Institution (BSI) provides standards and testing for various products, including vitreous enamel panels. BS EN ISO 28765 is a British Standard that specifically addresses vitreous and porcelain enamels for industrial applications.


2-EN (European Norms): The European Committee for Standardization (CEN) issues European Norms (EN) that define the technical specifications and performance requirements for products, including vitreous enamel panels. EN 14431 is the European standard for vitreous enamel panels and specifies the requirements for their properties and performance.


3-ASTM (American Society for Testing and Materials): ASTM International develops and publishes technical standards for various materials and products. ASTM standards relevant to vitreous enamel panels include ASTM B604 and ASTM B605, which cover the testing methods for metallic coatings and enamels on metal substrates.


4-SGS (Société Générale de Surveillance): SGS is a multinational company that provides inspection, testing, and certification services. They offer comprehensive testing and certification services for various products, including vitreous enamel panels. SGS can perform tests to verify the quality, performance, and compliance of vitreous enamel panels with the applicable standards.






Product Gallery

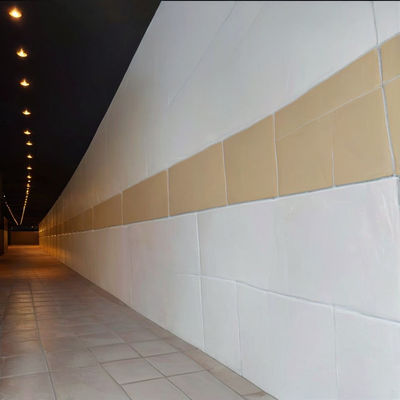

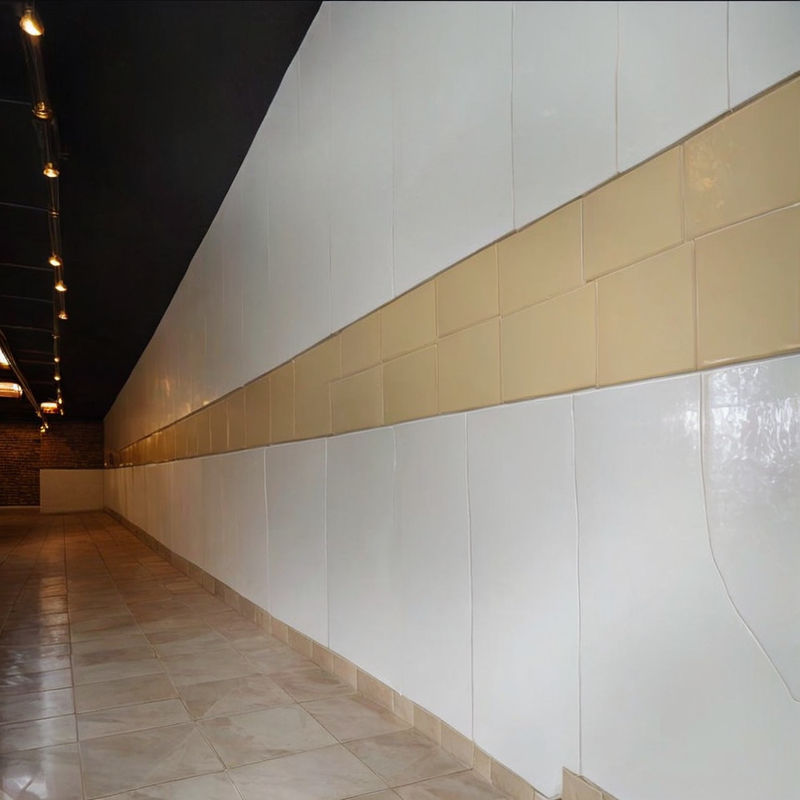

Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors 0




Elegant Sophisticated Vitreous Enamel Panel for Luxury Interiors 1











Product Application



Popularly Used Among

Hotels, shopping malls, restaurants,

hospitals, airports, exhibition halls



Subways, tunnels, pedestrian

passageways, train stations






Product Data




low carbon /zero carbon steel/

High quality decarburized steel

Surface Protection VITREOUS ENAMEL
Thickness of enamel surface Base coat 60-100um, Top coat 100-350um, total 160-450um. (Depend on different colors) Grade low carbon C + Mn + P + S content / (total 0.8 %) produced to EN 10209 / Decarbonized “zero carbon” steel
Pattern Thickness ≦20μ (Silk Screen) Max Length ≦2500 mm

Weight –

(Thickness 1MM)

27.48 KGS/PC (1.0mm thickness) Max Width ≦1400 mm
Application Interior- Exterior /Tunnel Thickness 1.0-1.5 mm
Enamel powder



Rigidity support core 10mm calcium silicate board, or 10/12/15mm aluminum Honeycomb core with excellent rigidity and sound-proofing, Immune to corrosion
Backing 0.5mm electro-galvanized steel with moisture resistant coating behind the rigidity support backing
The coating will follow the rules as described in the following standard:

Adherence level of enamel

BS EN 10209

Resistance to Alkali

BS1344, Part 6

Citric acid resistance


Heat resistance


Salt Spray test


Aging of Sandwich Construction

ASTM: C481-99

Resistance to Chemical corrosion

BS14483-4/ 14483-2/ 14483-1

Fire resistance


Low voltage test

BS EN ISO 8289

Thermal shock test BS1344-1

Defecting and locating defects test


Visual inspection




The thickness of the pattern depends on the color;

The warranty time of the pattern will be same as the surface coating of VITREOUS ENAMEL PANELS;

The pattern on the curved panel (column shape) will be produced by man-hand, so it might be slightly tolerance for each piece.

Where shown in the Drawings, the Wall Cladding shall be finished with Vitreous Enamel system.

The coating is based on Dry Powder Electrostatic Enameling. The color shall be for one side and be selected by the Architect/SO.
